Sale!

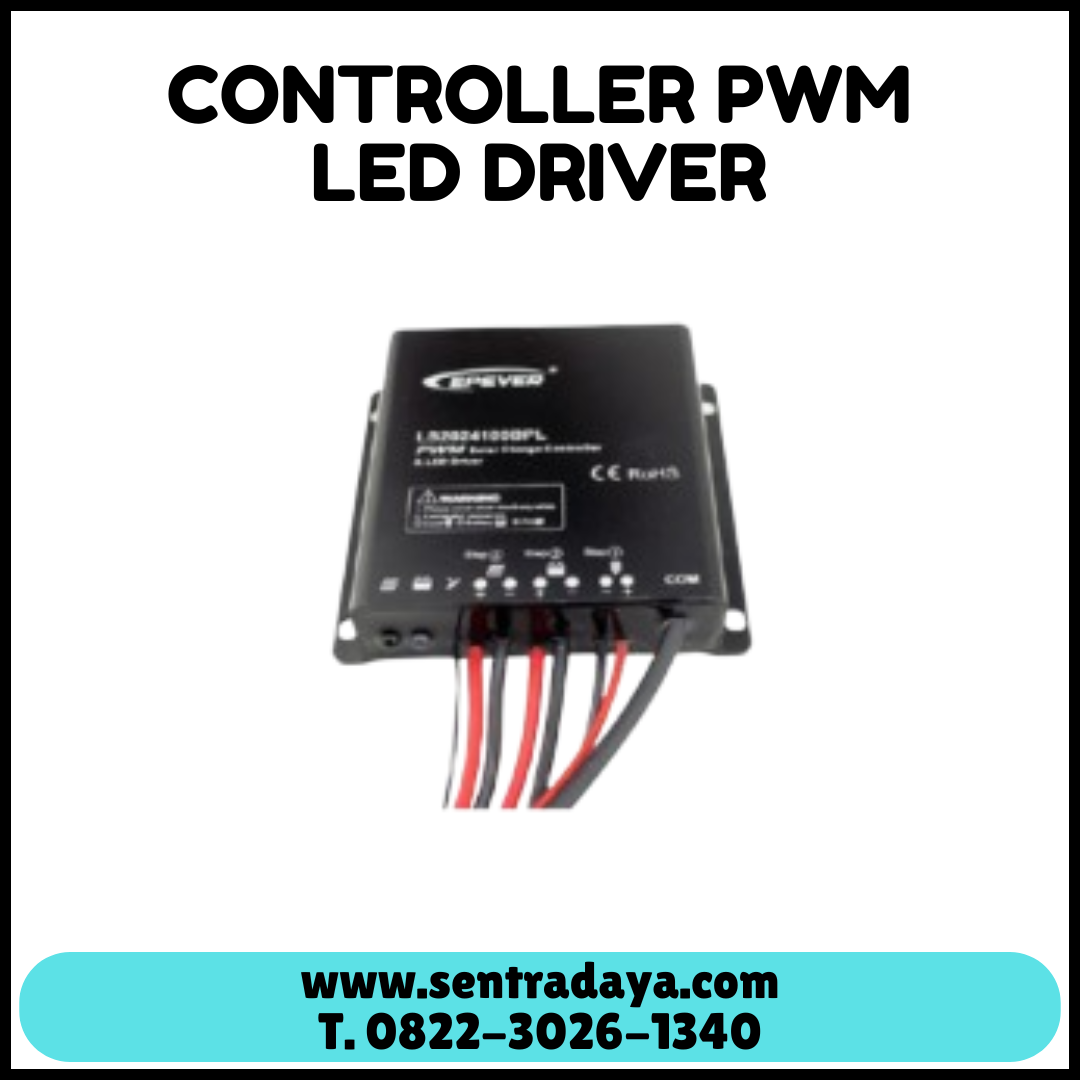

CONTROLER PWM LED DRIVER | BCR PLUS DRIVER PJU TENAGA SURYA EPSOLAR

Rp650,000.00 Rp545,000.00

LandStar BPL series combines solar charge controller and LED constant current driver into one unit which is ideal for solar LED Lighting, especially when dimmer function is needed. The control parameter can
be programmed via Mobile APP, PC Monitor setting software with RS485
communication interface.

wws Aditya / Pertanyaan Butuh bantuan? Hubungi melalui WhatsApp
SKU: LS202410BPL Category:

CONTROLER PWM LED DRIVER | BCR PLUS DRIVER PJU TENAGA SURYA EPSOLAR

Product Highlights

  • PWM charging mode
  • Battery type selection: Sealed, Gel, Flooded and User(programmable)
  • Extensive electronic protection
  • IP67 protection class
  • LED load dimmer function
  • Multiple load control modes
  • RS485 communication port to realize IOT monitor



FITUR

  • Apply to lead-acid battery and lithium battery
  • 12/24VDC automatically identifying system voltage or user-dened working voltage
  • 3-Stage intelligent PWM charging?Bulk, Boost/Equalize, Float
  • Battery temperature compensation function
  • Digital precision constant current control and the control accuracy are less than 30mA
  • Maximum output eciency of 96.7%
  • The output current can be adjusted among the rated power and current range
  • Intelligent power mode with 365-day lighting control technology
  • Load test function for detecting the system
  • Multiple load control modes
  • Extensive Electronic protection
  • Monitoring and setting parameter via Mobile APP, PC Monitor setting software with
  • RS485 communication interface
  • Use of standard Modbus communication protocol for RS485 bus connections,
  • communication protocol compatibility much better
  • Connecting the IOT(Internet of Things) module and Cloud Server monitoring
  • software to realize remote monitoring of the multi-machine system
  • The RS485 connector can provide power supply
  • Aluminum housing for better cooling
  • IP67 waterproof degree

Elektronik protection

  • PV Short Circuit
  • PV Reverse Polarity
  • Battery Reverse Polarity
  • Battery Over Voltage
  • Battery Over Discharge
  • Battery Overheating
  • Libattery low temperature
  • Load Short Circuit
  • Controller Overheating
  • High Voltage Transients

BSN merupakan perusahaan yang bergerak dibidang catudaya sejak 2005 di mulai dari perusahaan Sentradaya atau SCL Group. Kami sudah berpengalaman lebih dari 15 tahun dibidang catudaya dan pengembangan di bidang renewable energy dengan fokus pada bidang pju tenaga surya. Produk – produk kami terus berkembang mulai dari : UPS Riello, Rectifier, Inverter Offgrid, Inverter Off grid, Baterai. Untuk produk PLTS (Pembangkit listrik tenaga surya) kami menyediakan produk PJU TENAGA SURYA | PLTS SHS SEDERHANA | PLTS KOMUNAL | PLTS ONGRID | PLTS HYBRID | PLTS TRAFFIC LIGHT | WARNING LIGHT | PENANGKAL PETIR | PABRIKASI TIANG PJU OKTAGONAL | PANEL SURYA | SPARE PART PELENGKAP

Weight 1 kg
